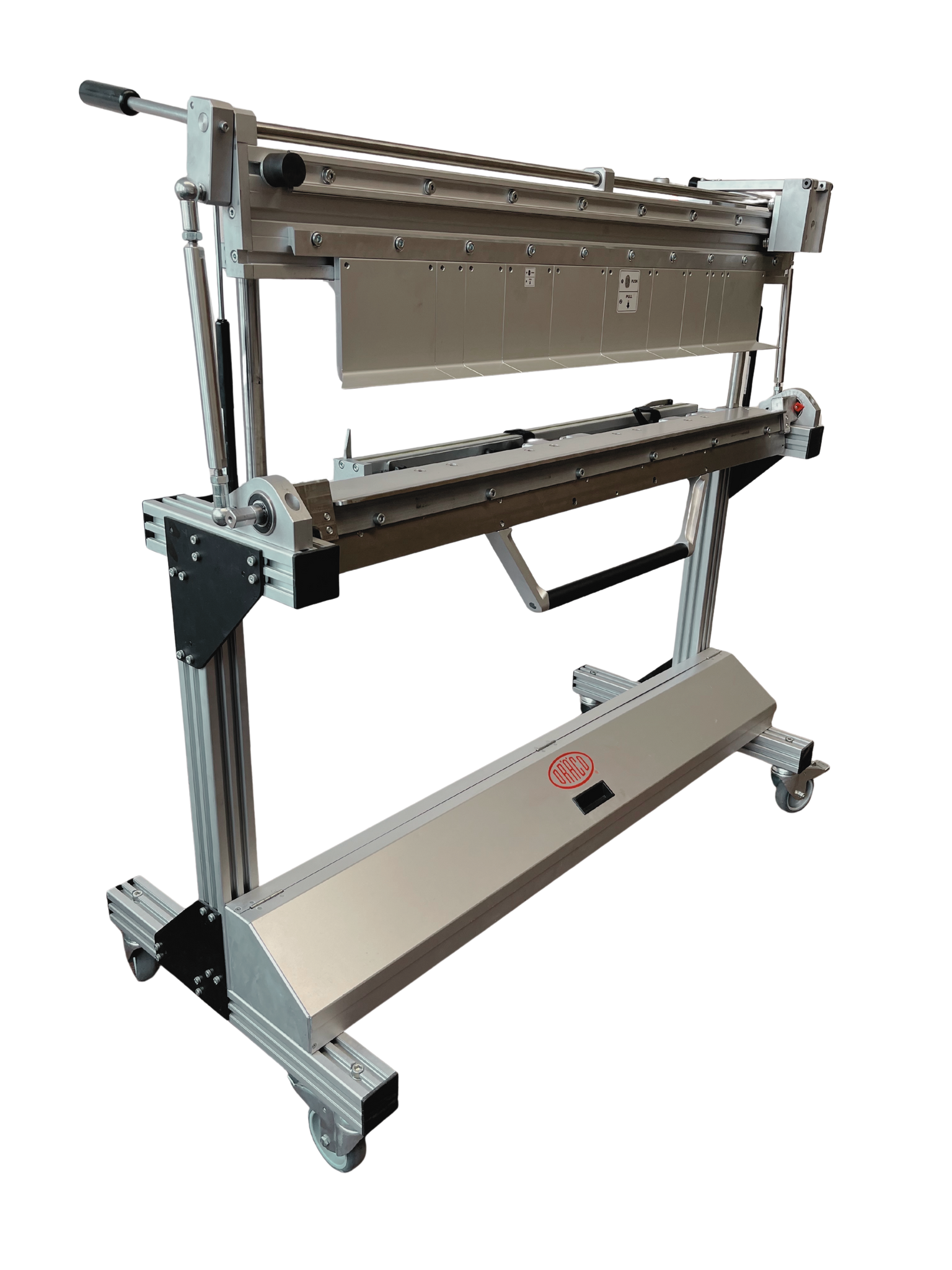

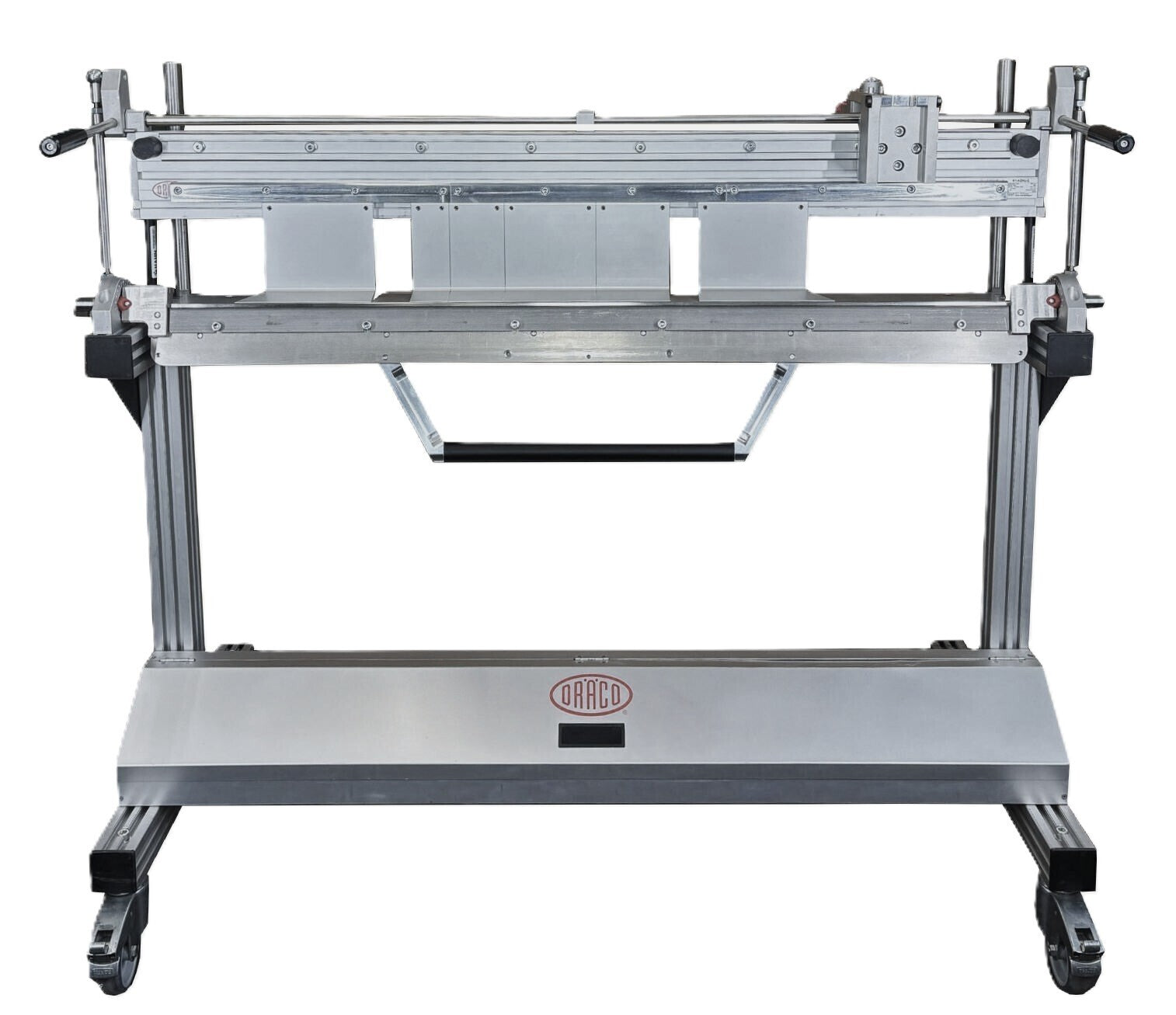

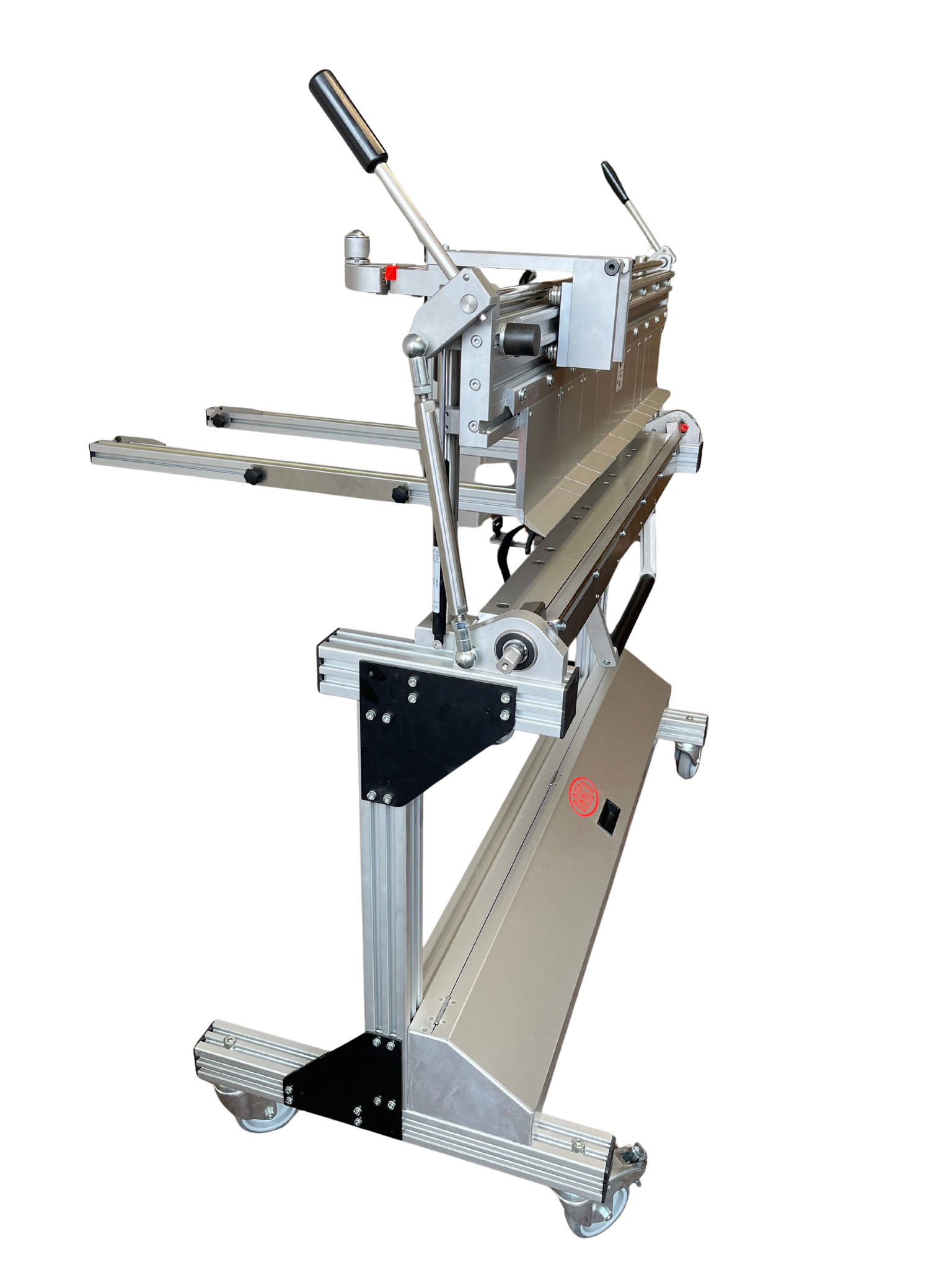

Draco K1-AGNU-4 - Hand Operated Detail Folding Brake with Frame
Characteristics:
- ideal for roof and wall cladding
- solves all technical bending problems
- clamping of sheet metal with eccentrics and hand lever
- gas-pressure spring counterbalances top clamping bar
- bending possible in all technical directions for roof and wall claddings
- brake can also be screwed on to a working bench
- brake removable from frame, for easy transport to the roof
- all parts used on the brake are made of rustproof materials
Technical data:
- working width = 1120 mm
- weight = 90 kg only
- Opening of top clamping bar 120 mm
- Aluminium, Copper, Lead, Zinc 0,8 mm
- Steel 0,6 mm
- Stainless steel 0,5 mm
Standard-Equipment:

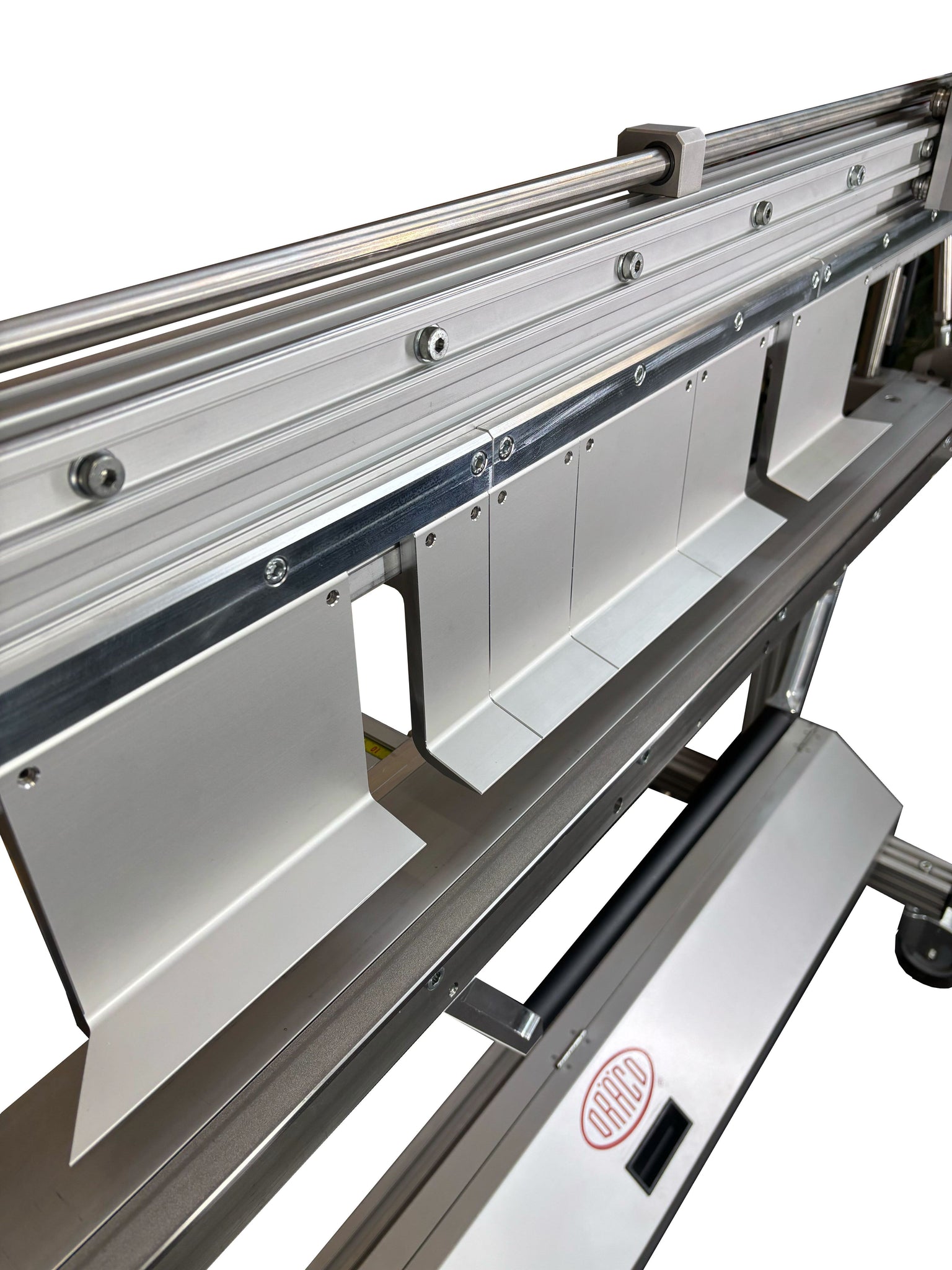

- segments for top clamping bar 30 / 40 / 50 / 60 / 100L / 100R/ 4x180 mm (1100 mm)
- assortment for bottom bending bar 1120 mm, 200 mm, 300 mm, 500 mm
- frame with 4 castors
- allen wrenches

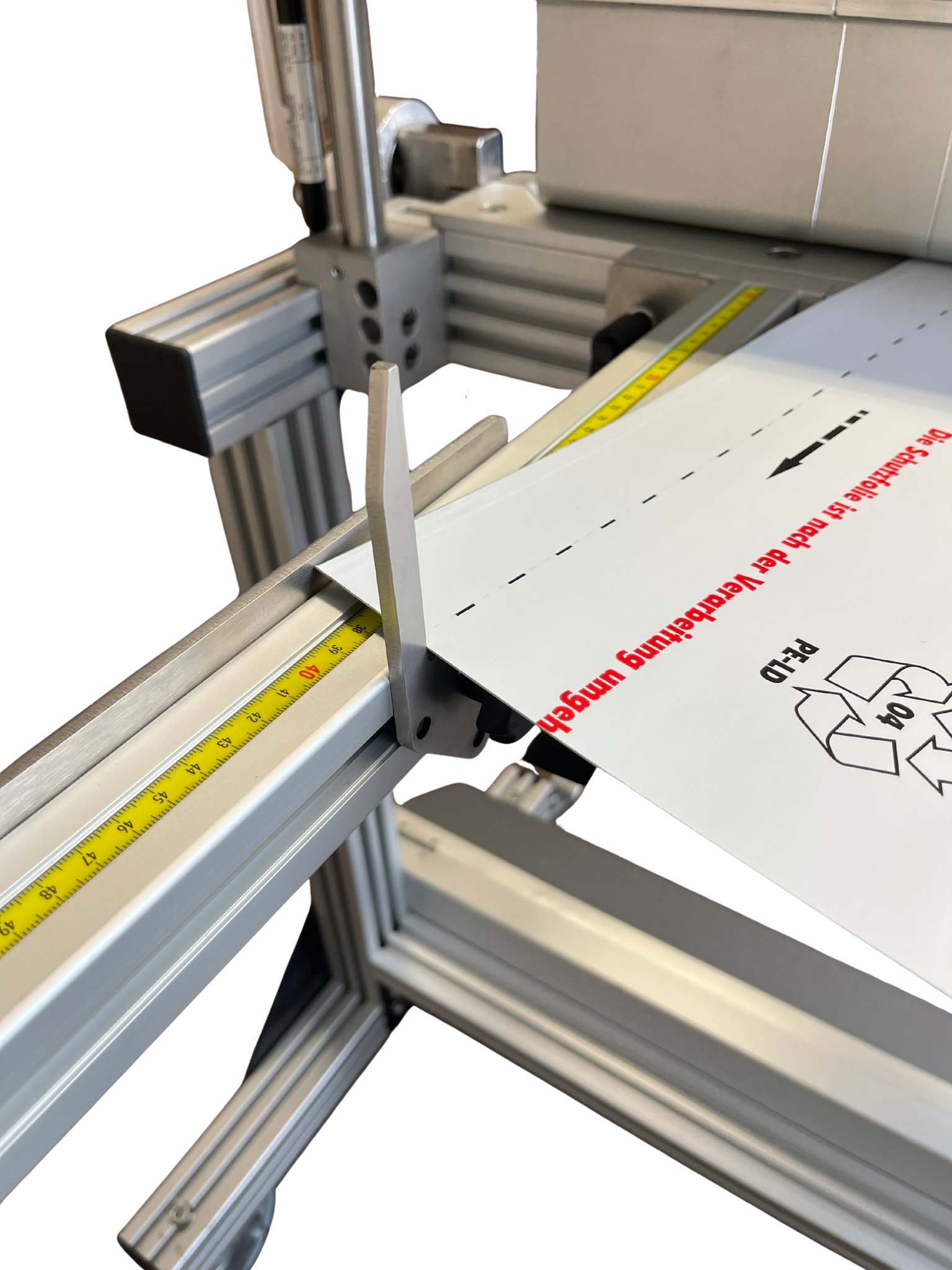

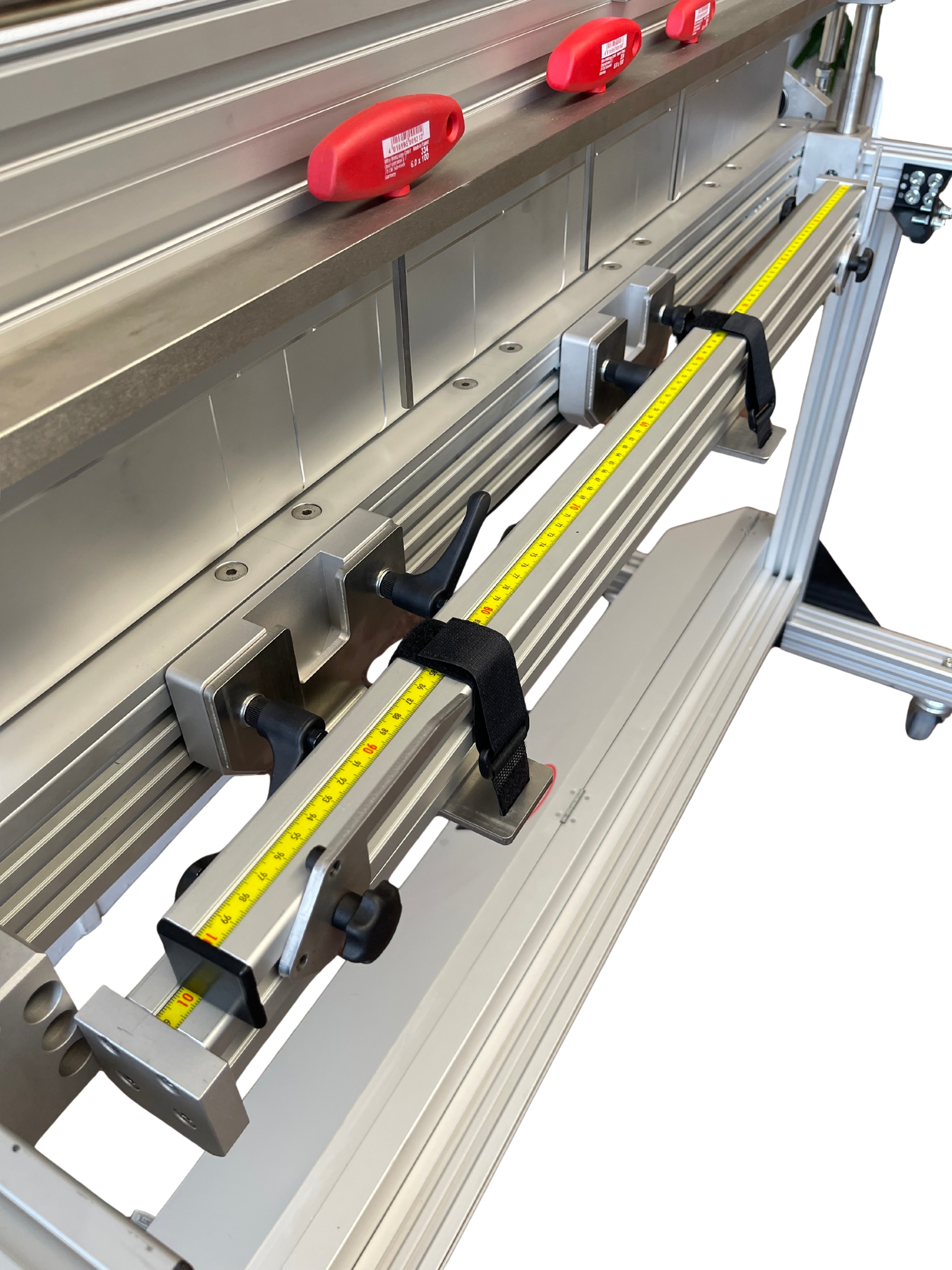

- straight fence

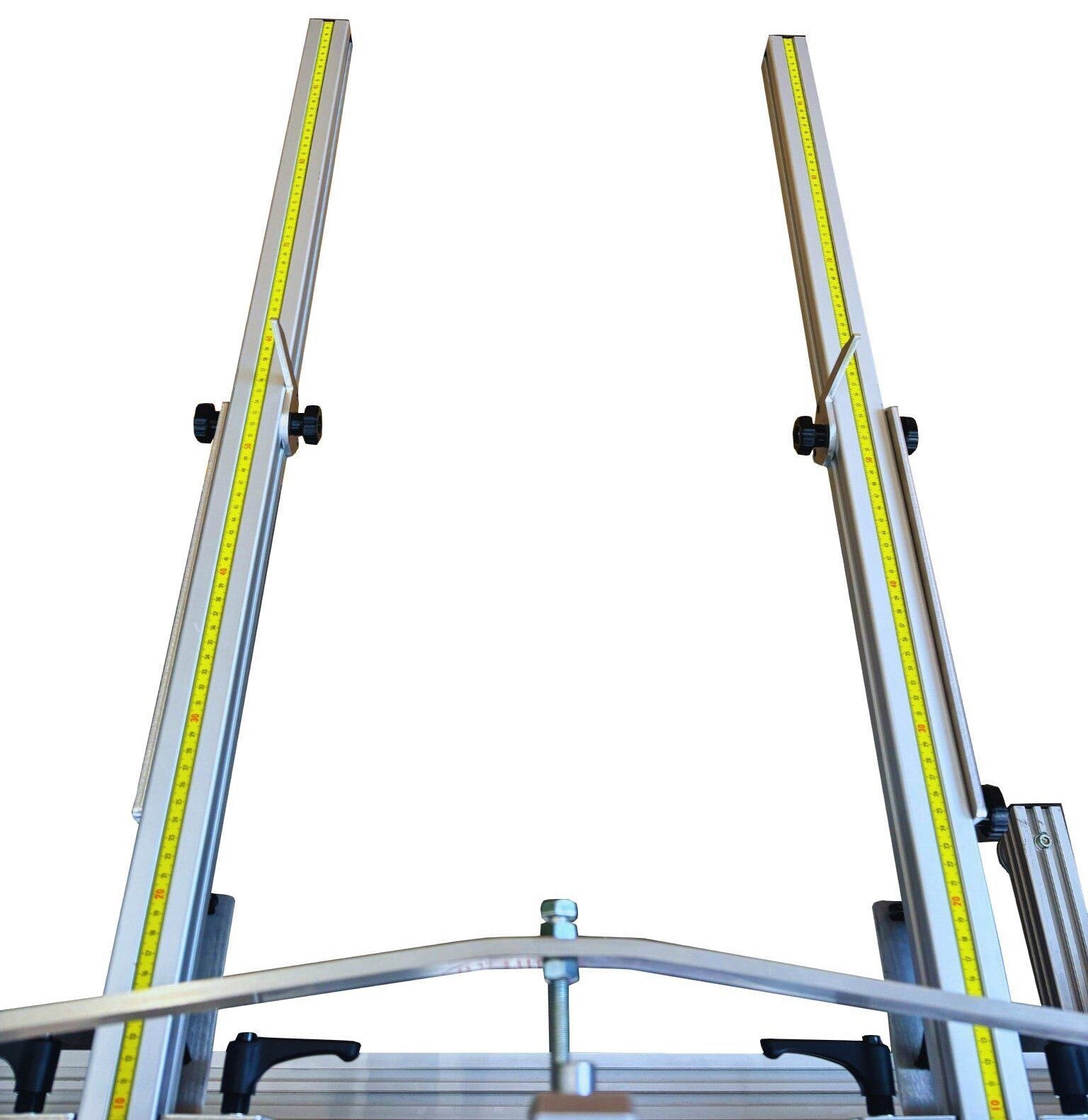

- angle fence
- metal box for safe storage of parts and tools
Optional accessories (prices on request):
-K1-AGNARS Adapter set for beading rollers Multi-Bender (needed to convert the roller shear to the profiling head)
-Profiling head with carriage + 1 set of offset rollers 9179001
-Profiling head + 1 set of offset rollers 9179001
Ask customer service for a leaflet and operating instructions
Leadtime 4-5 weeks from date of order
