ROTHOBLAAS SHIELD2 - Support for trapezoidal metal roof 250-370mm

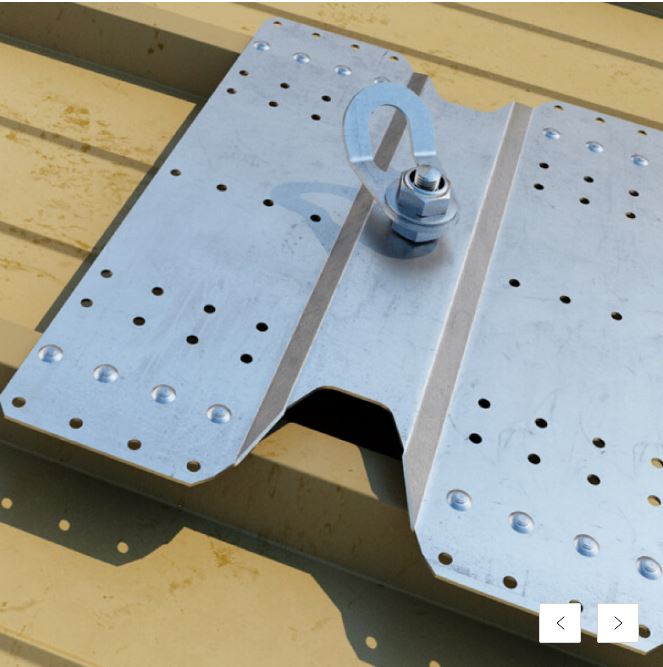

SHIELD 2.0 is the intermediate support designed for anchor lines on corrugated sheet metal roofs. Used to create anchor lines with the PATROL system in combination with the SHIELD support, it acts also as support for AOS01 anchor points.

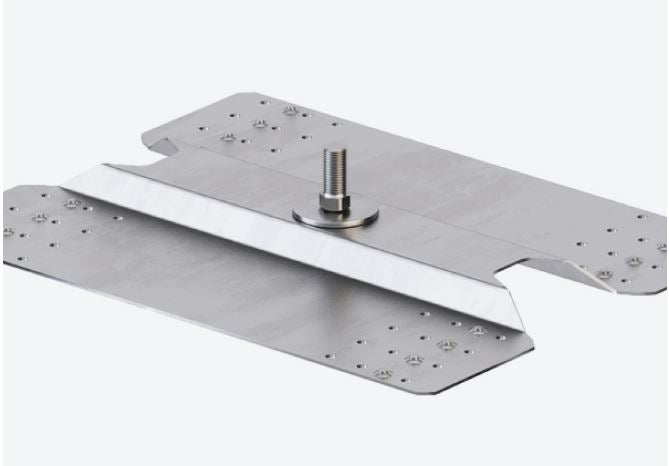

SHIELD 2.0 ensures fast and simple installation, thanks to the configuration as a single plate on which the intermediate components of the PATROL anchor line or the AOS01 anchor point are installed. The SHIELD 2.0 support is designed for installation on corrugated sheets or corrugated sandwich panels, both steel and aluminium.
The supply includes assembly rivets and seals in cellular rubber, to guarantee perfect waterproofing of the structure after installation. The AOS01 anchor point is not included and can be ordered separately.
Maximum load: 2 users
| CODE | material | B
[mm]
|
H
[mm]
|
L
[mm]
|
pcs. |
|---|---|---|---|---|---|
| SHIELD2 | AISI 304 stainless steel grade 1.4301 | 420 | 65 | 322 | 1 |
